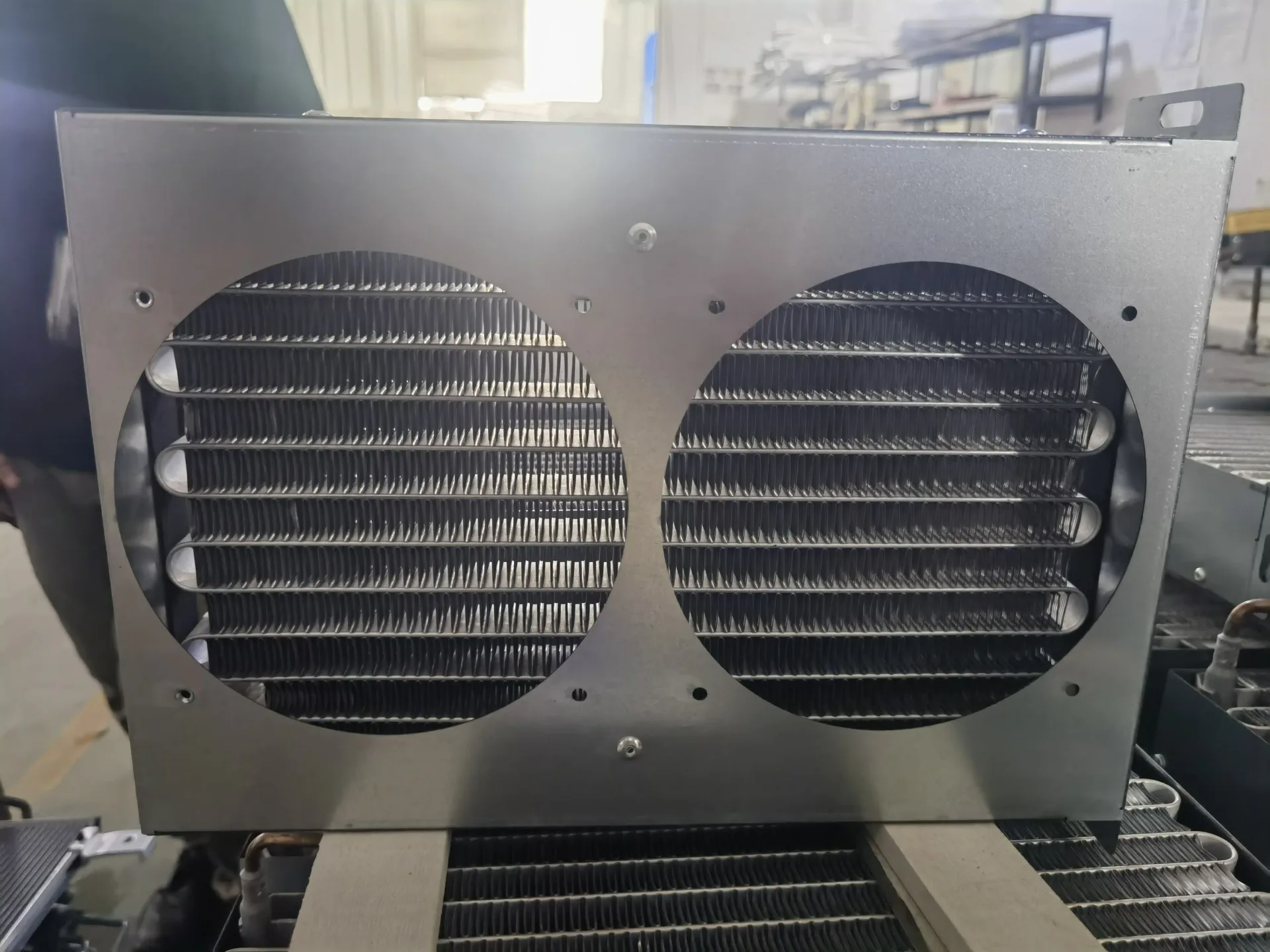

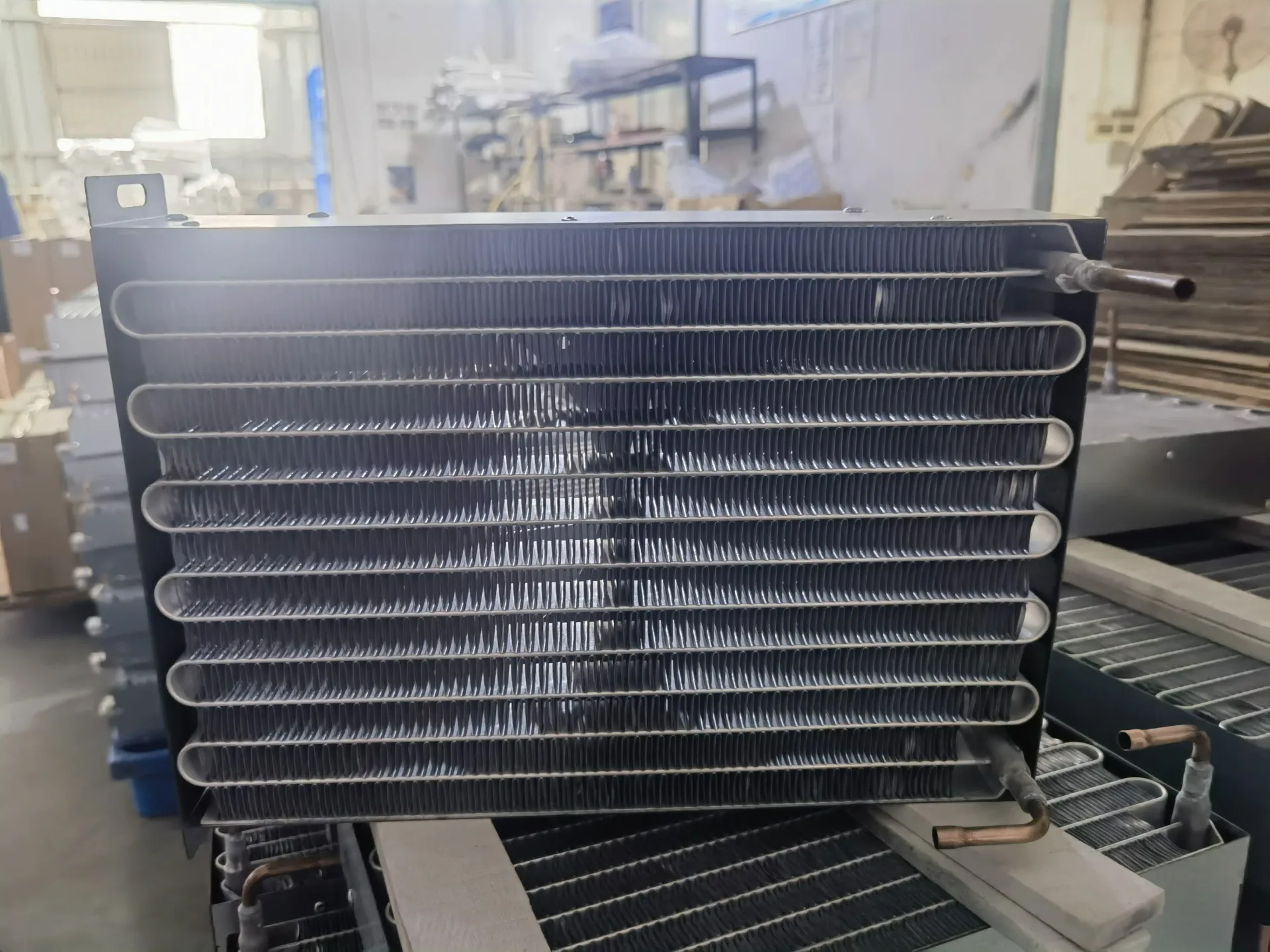

Custom Aluminum Microchannel Heat Exchanger Condenser (Flat Tube)

Name: Custom Precision CNC Machined Parts
Brand: Altus Precision
SKU: ALTUS-CNC-CUSTOM
Availability: InStock
Rating: 4.8 (47 reviews)

High-productivity aluminum microchannel heat exchanger and condenser engineered for advanced thermal management. Featuring a compact flat-tube design, precise laser welding, and a robust 45-bar pressure rating, this eco-friendly unit ensures optimal fluid dynamics for water, oil, steam, and low-GWP refrigerants across global supply chains.

Model

CP-AL-01

MOQ

Submit Inquiry Contact Sales Engineer

Process & Delivery Advantages

Supports ±0.01mm tolerance, with full coverage of 3/4/5-axis CNC machining centers
Materials include aluminum alloy, stainless steel, copper, titanium alloy, and engineering plastics
Paired with anodizing, electroplating, spraying, laser engraving, and other surface treatments
100% full inspection before shipment, with first-article reports and dimensional CP/CPK data provided
In-house capacity in Dongguan, 7-15 days for standard parts, expedited channel within 5 days

PRODUCT OVERVIEW

Product Overview

Engineered for high-productivity cooling and demanding industrial environments, this custom aluminum microchannel heat exchanger condenser utilizes an advanced flat-tube design to maximize thermal efficiency. Manufactured at our precision CNC and fabrication facility, the unit features ultra-small hydraulic diameter channels (0.2–3.0 mm) and robust laser welding. It is fully optimized for eco-friendly refrigerants and seamless integration into global OEM thermal management supply chains.

Technical Specifications

Parameter	Specification
Tube & Fin Material	High-Purity Aluminum (Copper/Stainless/Titanium options available)
Welding Technology	Precision Laser Welding
Fluid Compatibility	Water, Oil, Steam & Low-GWP Refrigerants (R744/R32/R410a/R513a)
Maximum Pressure Rating	45 Bar
Working Temperature Range	-40°C to +150°C
Flow Capacity	Max 56 m³/h (50 gpm)
Microchannel Diameter	Ultra-small hydraulic channels (0.2–3.0 mm)
Unit Weight	70 kg

Core Manufacturing Advantages

Advanced Laser Welding: Ensures superior structural integrity and leak-proof performance under extreme 45-bar pressure conditions.
Proactive DFM Analysis: We offer custom dimensional scaling (from 200x200mm up to 1200x1200mm) and fin type customization (louvered, flat, wavy) to match your specific thermal load.
Eco-Friendly Compliance: Engineered to operate flawlessly with modern low-GWP refrigerants (such as R744 and R32), supporting sustainable industrial practices.
Seamless Global Export: From single-unit prototype testing to high-volume OEM mass production, we provide certified machinery test reports and dedicated export logistics.

Frequently Asked Questions (FAQs)

Q1: What types of fluids are compatible with this microchannel condenser?

A1: This highly versatile unit is fully compatible with water, oil, steam, and a wide range of standard and low-GWP refrigerants including R744, R32, R410a, and R513a.

Q2: Can the overall dimensions and materials be customized for my project?

A2: Yes. While aluminum is standard, we offer copper, stainless steel, and titanium configurations. Dimensions can be tailored based on your working conditions, ranging typically from 200x200 mm to 1200x1200 mm.

Q3: How do you ensure the heat exchanger can withstand high pressures?

A3: The core utilizes precision laser welding rather than traditional brazing, which provides exceptional joint strength. Every unit is pressure tested to safely operate at up to 45 bar before dispatch.

Q4: What is the minimum order quantity (MOQ) for this industrial unit?

A4: We support agile engineering and prototyping with no strict MOQ—you can order starting from 1 piece for initial integration testing, with scalable pricing available for volume OEM orders.
