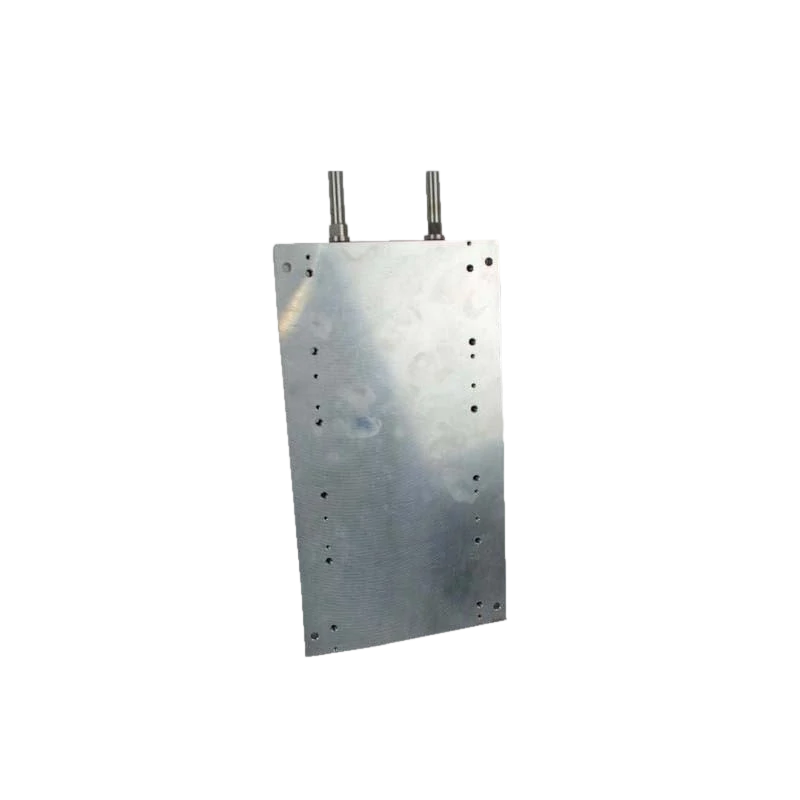

Custom Copper Tube Embedded Aluminum Liquid Cold Plate

Name: Custom Precision CNC Machined Parts
Brand: Altus Precision
SKU: ALTUS-CNC-CUSTOM
Availability: InStock
Rating: 4.8 (47 reviews)

High-performance plate heat exchanger featuring a robust aluminum base with precision-embedded copper fluid channels. Engineered for customized high safety level operations, this 10kg thermal management unit delivers exceptional heat dissipation for demanding semiconductor, GPU, and industrial power electronics across global supply chains.

Model

CP-AL-02

MOQ

Submit Inquiry Contact Sales Engineer

Process & Delivery Advantages

Supports ±0.01mm tolerance, with full coverage of 3/4/5-axis CNC machining centers
Materials include aluminum alloy, stainless steel, copper, titanium alloy, and engineering plastics
Paired with anodizing, electroplating, spraying, laser engraving, and other surface treatments
100% full inspection before shipment, with first-article reports and dimensional CP/CPK data provided
In-house capacity in Dongguan, 7-15 days for standard parts, expedited channel within 5 days

PRODUCT OVERVIEW

Product Overview

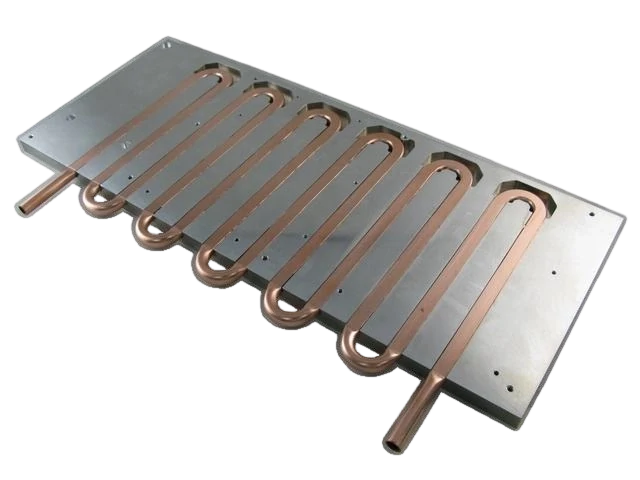

Engineered for critical thermal dissipation, this custom liquid cold plate utilizes a hybrid construction of a highly conductive aluminum base with precision-embedded copper tubes. Designed to function as a highly efficient plate heat exchanger, it is optimized for high-power electronics, GPU/CPU arrays, and semiconductor equipment. Manufactured at our dedicated CNC facility, this unit ensures high safety levels and reliable structural integrity for integration into global high-tech supply chains.

Technical Specifications

Parameter	Specification
Core Materials	Aluminum Plate & Copper Tubing
Heat Exchanger Type	Plate Heat Exchanger
Unit Weight	10 kg
Flow Capacity	Customized per fluid dynamics requirements
Max Operating Temperature	Customized to specific thermal loads
Core Components	Pressure Vessel Integration
Quality Assurance	Machinery Test Report Provided (High Safety Level)

Core Manufacturing Advantages

Hybrid Thermal Efficiency: Combining the rapid heat absorption of copper channels with the lightweight, wide-area dissipation of an aluminum base.
Proactive DFM Analysis: We provide detailed engineering evaluations to customize tube routing, dimensions, and flow capacities for your specific equipment.
Strict Pressure Testing: Categorized with pressure vessel core components, every unit undergoes rigorous machinery testing to ensure leak-proof reliability under high pressure.
Seamless Global Export: Supporting agile prototyping (MOQ 5 pcs) through to mass OEM production with direct delivery to international tech sectors.

Frequently Asked Questions (FAQs)

Q1: Why use a combination of copper tubes and an aluminum plate?

A1: Copper offers superior thermal conductivity for immediate heat transfer away from critical components like GPUs, while the aluminum base provides a lightweight, cost-effective structure for broader heat dissipation and structural mounting.

Q2: Can the fluid channel routing be customized for our specific equipment?

A2: Absolutely. Both the flow capacity and the physical routing of the copper tubes can be fully customized during our DFM process to align with your proprietary thermal management requirements.

Q3: How do you verify the safety and leak resistance of these heavy-duty plates?

A3: Every 10kg plate heat exchanger undergoes strict high-pressure testing. We provide a comprehensive machinery test report with every batch to guarantee a high safety level and zero-leakage performance.

Q4: What is the Minimum Order Quantity (MOQ) for prototyping?

A4: We support agile R&D and pilot runs with a flexible MOQ of just 5 pieces, allowing your engineering team to validate thermal performance before scaling to high-volume production.
