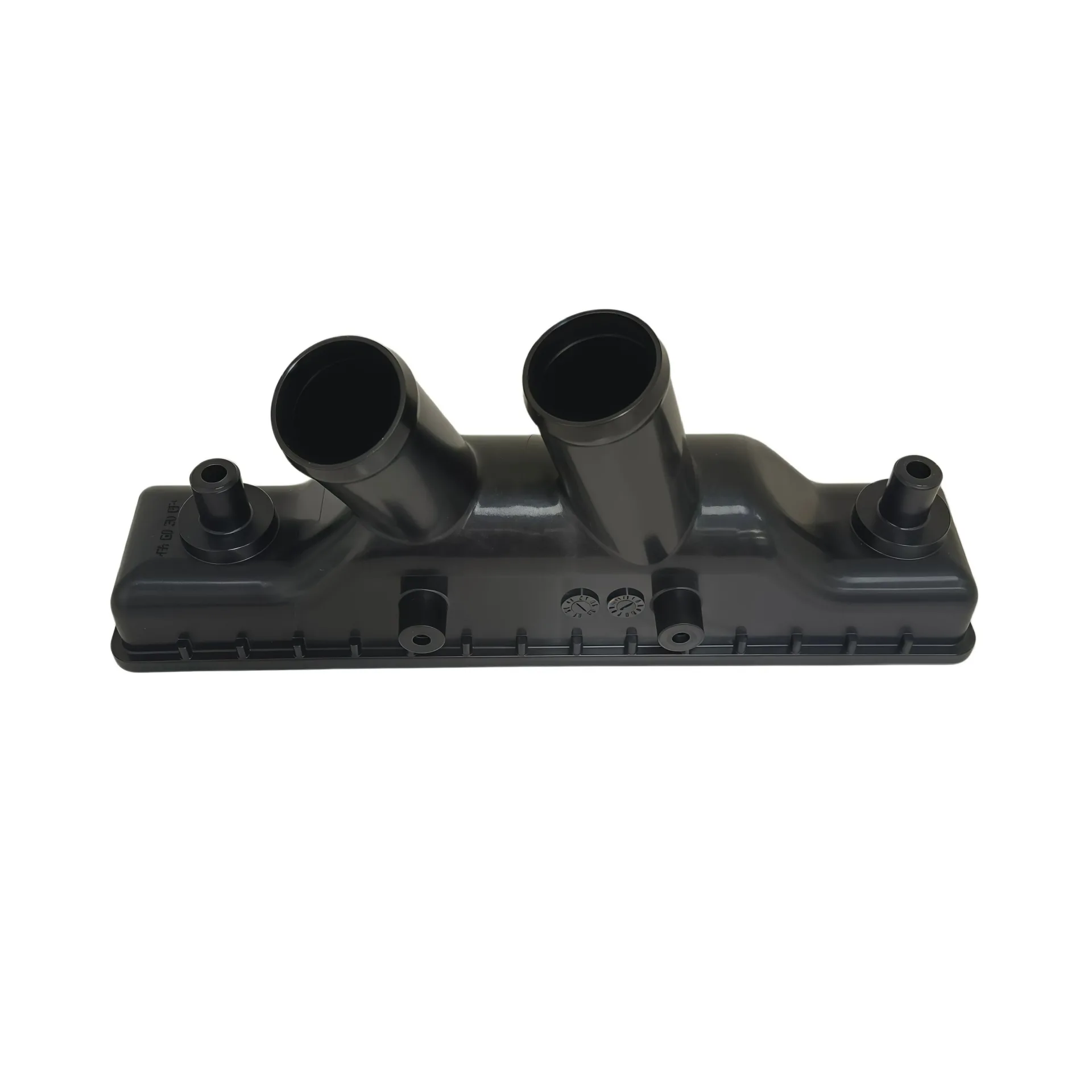

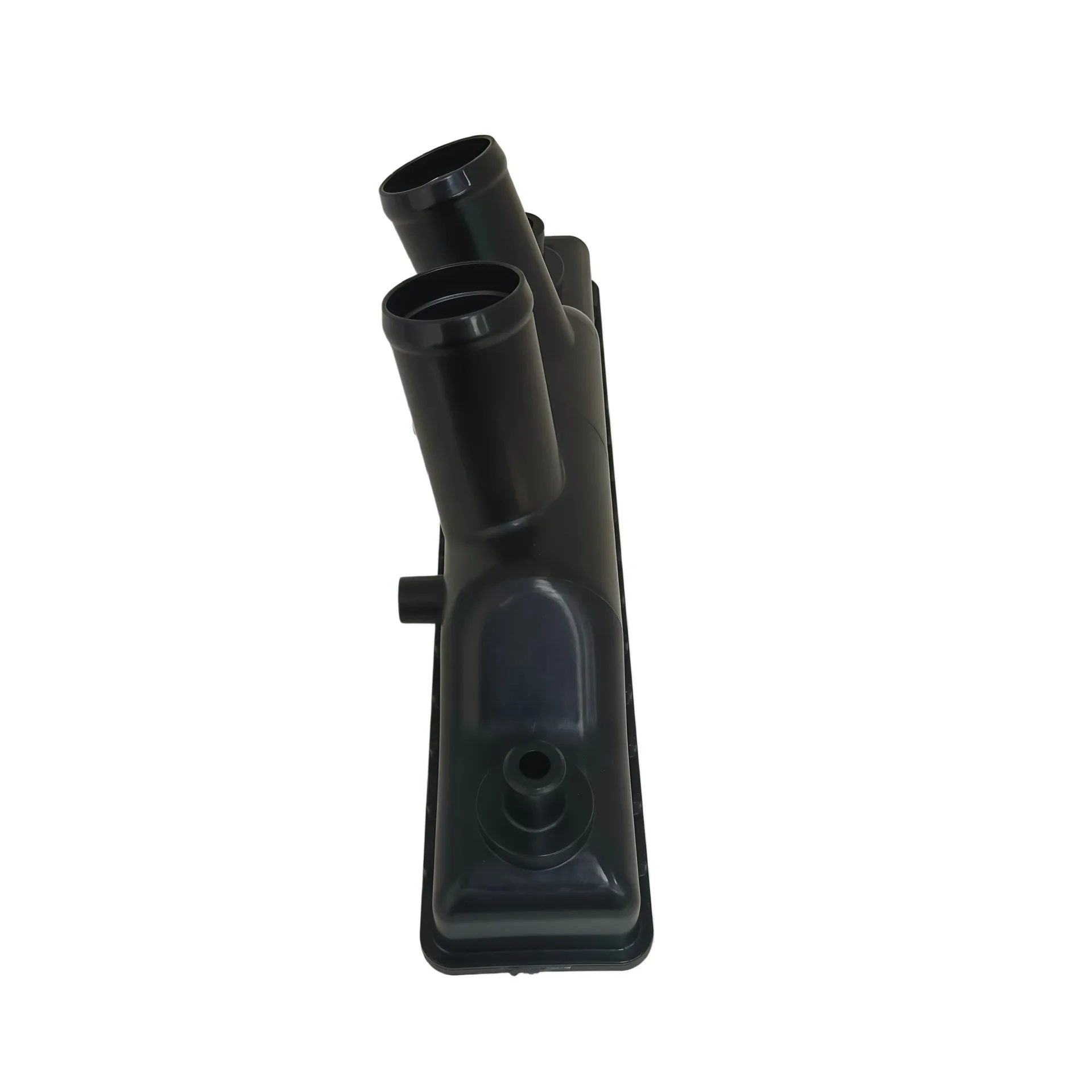

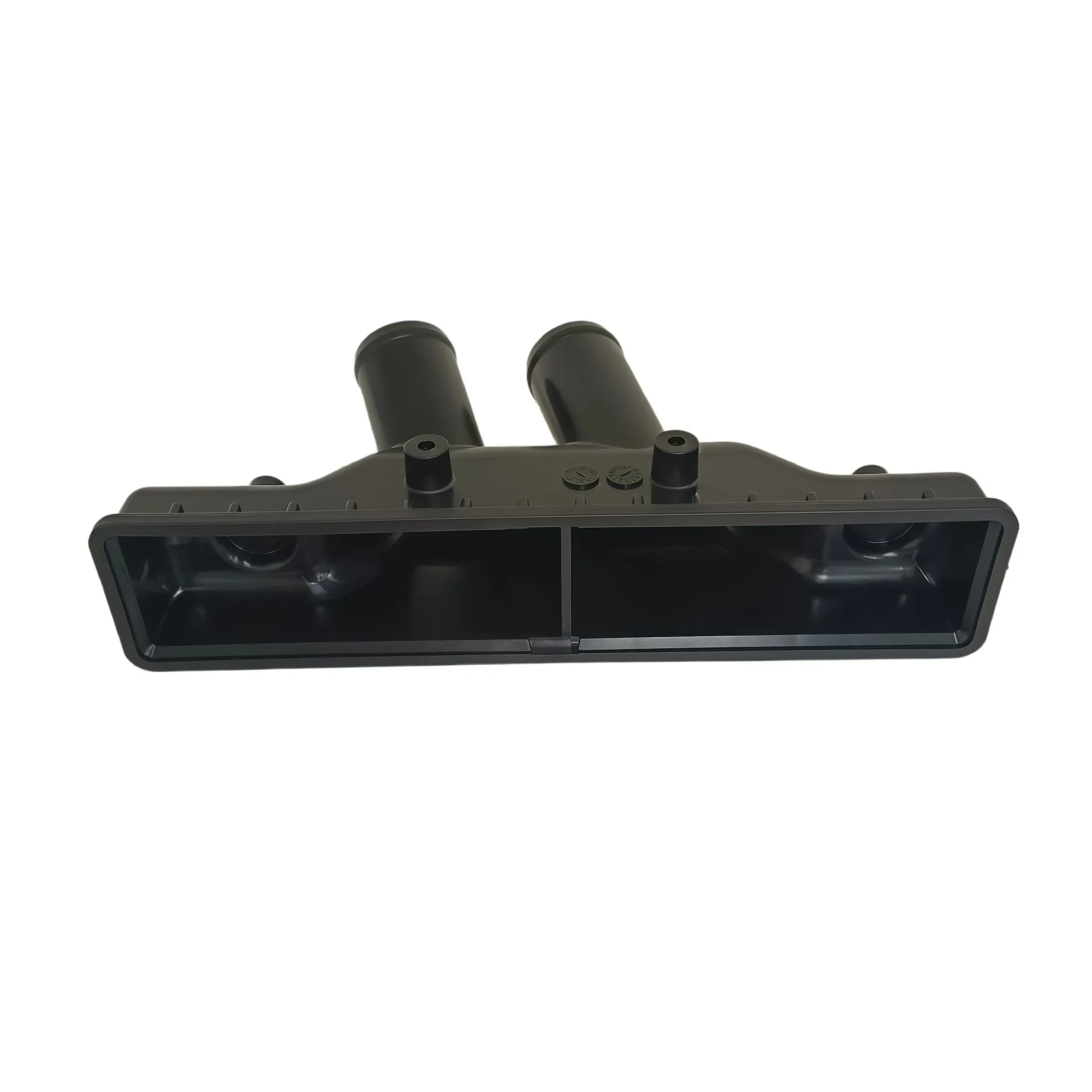

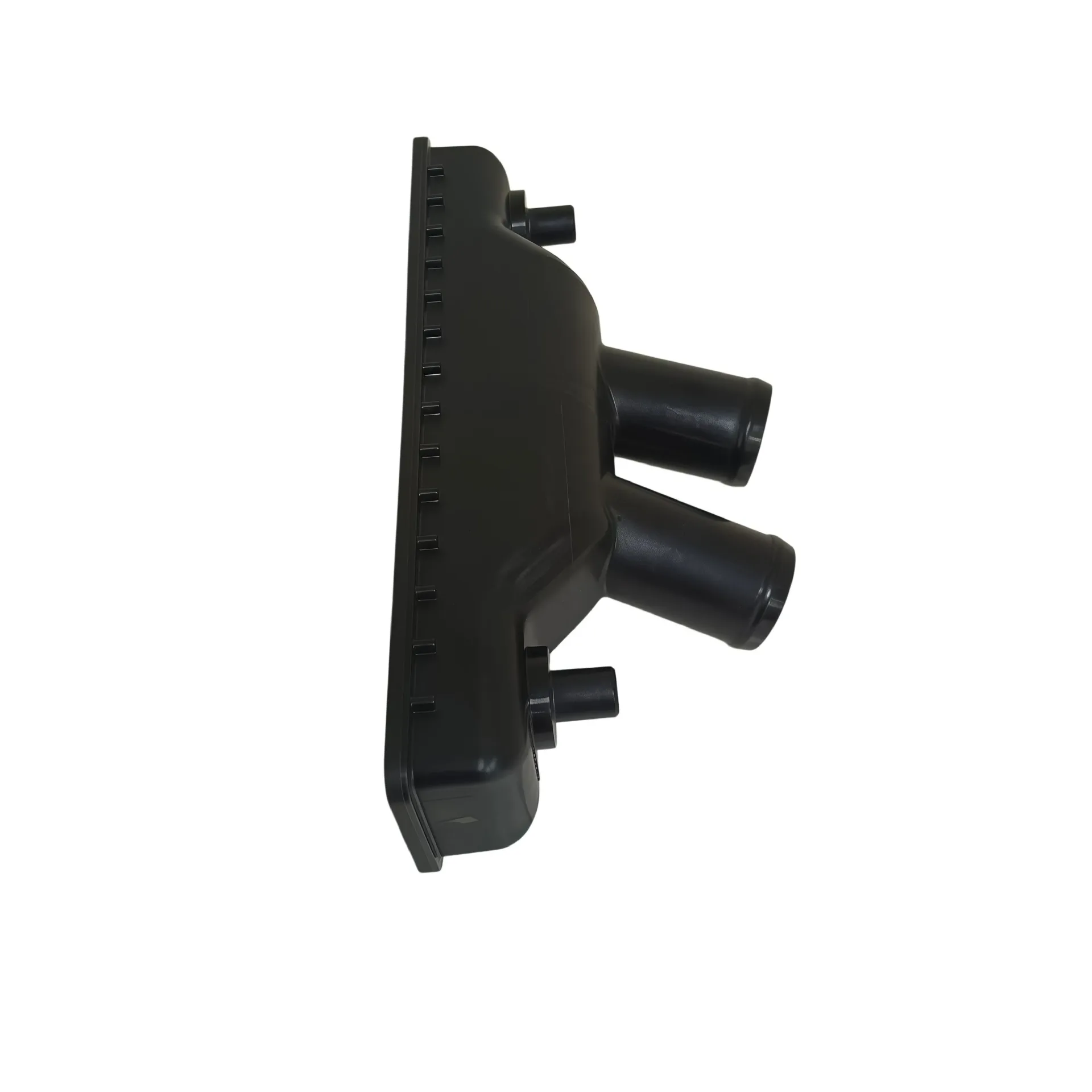

Custom PA66 GF30 Automotive Cooling Manifold Plastic Component

Name: Custom Precision CNC Machined Parts
Brand: Altus Precision
SKU: ALTUS-CNC-CUSTOM
Availability: InStock
Rating: 4.8 (47 reviews)

High-precision automotive cooling manifold engineered from durable PA66 GF30 material. Featuring multi-cavity injection molding technology and robust thermal resistance, this custom plastic component delivers reliable liquid routing for EV thermal management and industrial fluid systems across global supply chains.

Model

CP-PA66-01

MOQ

100

Submit Inquiry Contact Sales Engineer

Process & Delivery Advantages

Supports ±0.01mm tolerance, with full coverage of 3/4/5-axis CNC machining centers
Materials include aluminum alloy, stainless steel, copper, titanium alloy, and engineering plastics
Paired with anodizing, electroplating, spraying, laser engraving, and other surface treatments
100% full inspection before shipment, with first-article reports and dimensional CP/CPK data provided
In-house capacity in Dongguan, 7-15 days for standard parts, expedited channel within 5 days

PRODUCT OVERVIEW

Product Overview

Engineered for critical thermal management applications, this custom Automotive Cooling Manifold provides robust and reliable fluid routing for EV battery systems and industrial equipment. Manufactured utilizing high-precision injection molding and premium PA66 GF30 materials, this component delivers exceptional heat resistance and mechanical strength. We offer comprehensive OEM/ODM plastic manufacturing solutions optimized for scalable integration into global supply chains.

Technical Specifications

Parameter	Specification
Base Material	PA66 GF30 (ABS/PP/PC/PMMA/PSU/PCTG/TPE/TPU/PBT optional)
Plastic Molding Type	High-Precision Injection Molding
Mould Material	H13 / P20 / NAK80 / S136 / 2738 / 2316 / S7 / 1.2344
Cavity Configuration	Multi-Cavity Cap Mold
Mould Life	100,000 - 500,000 Shots
Supported Drawing Formats	3D, STP, STEP, IGS, PRT, X_T
Service Type	OEM / ODM Customized Manufacturing

Core Manufacturing Advantages

Advanced Tooling & Molding: Utilizing premium mold steels (such as S136 and NAK80) to guarantee a long tooling life of up to 500,000 shots for consistent high-volume output.
Proactive DFM Analysis: We provide complimentary engineering reviews for your STEP/IGES files to optimize wall thickness, draft angles, and material flow before cutting steel.
Versatile Material Options: Beyond standard PA66 GF30, we process a wide range of engineering plastics including PEEK, PSU, TPU, and PBT to meet specific environmental and thermal requirements.
End-to-End Production: From rapid prototyping and mold design to final injection molding and value-added secondary operations, ensuring a streamlined global supply chain.

Frequently Asked Questions (FAQs)

Q1: What materials are available for this injection molded manifold?

A1: The standard model uses PA66 GF30 for high thermal and mechanical stability. We can also customize production using ABS, PP, PC, PMMA, PSU, TPU, PBT, and other engineering plastics based on your application needs.

Q2: What CAD file formats do you accept for quotation and manufacturing?

A2: We accept a wide variety of 3D CAD formats to ensure seamless engineering collaboration, including STEP (.stp), IGES (.igs), PRT, and X_T files.

Q3: What is the Minimum Order Quantity (MOQ) for injection molded parts?

A3: For this specific plastic component, our MOQ is set at 100 pieces. This allows for cost-effective pilot runs and initial assembly validations before scaling up to mass production.

Q4: Who retains ownership of the injection mold after production?

A4: Upon full payment of the tooling costs, the custom injection mold belongs entirely to you. We will safely store and maintain the mold in our facility for your exclusive future production runs.
