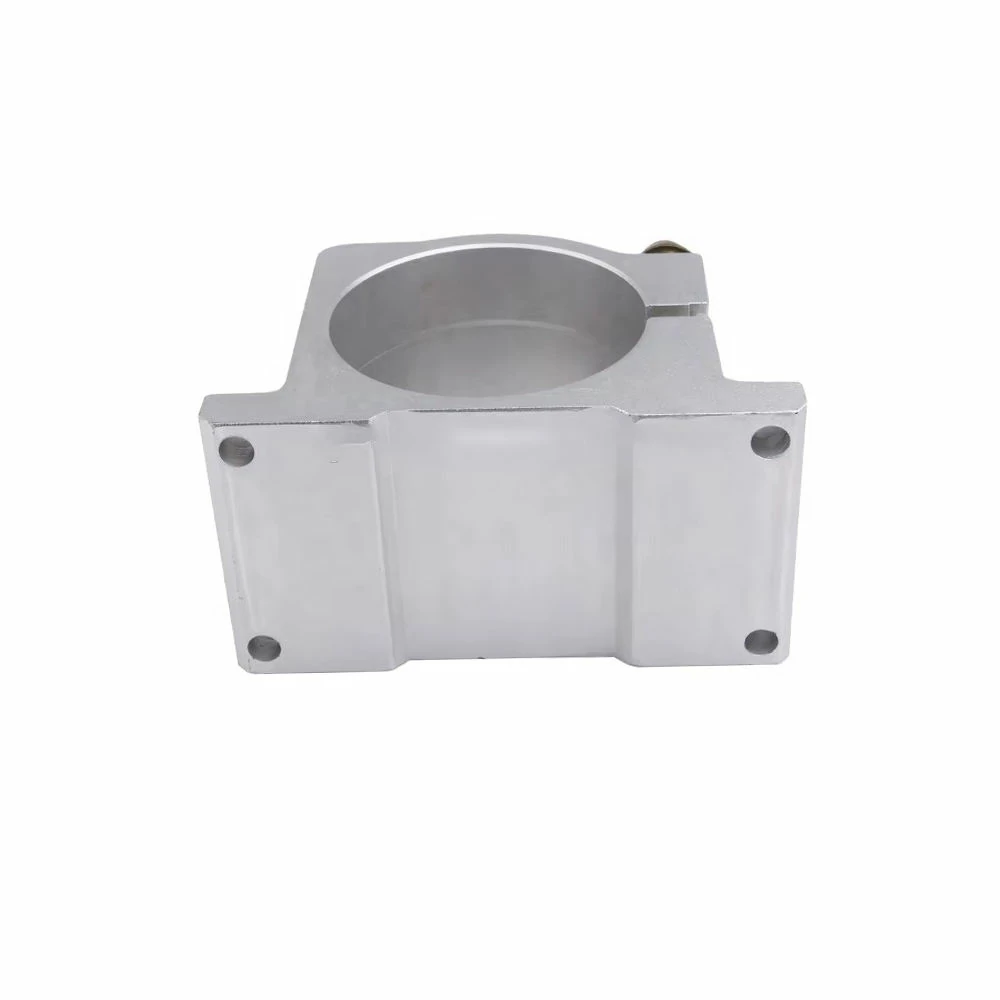

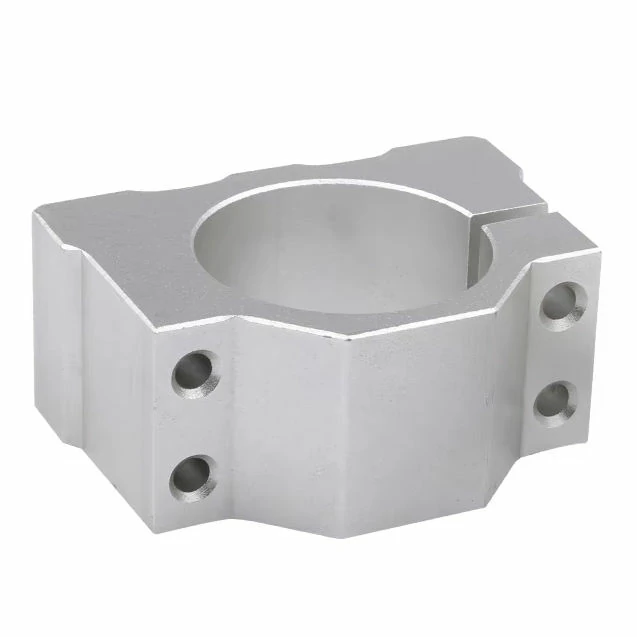

Cast Aluminum CNC Spindle Holder Mounting Bracket(48mm / 52mm)
Machine & Cutting Tool Accessories

Cast Aluminum CNC Spindle Holder Mounting Bracket(48mm / 52mm)

High-precision cast aluminum spindle holder engineered for CNC engraving and milling machines. Featuring 48mm and 52mm diameter compatibility, this robust 0.8kg mounting fixture ensures low-vibration clamping and strict tolerance alignment for industrial machining operations across global supply chains.

Model
MC-AL-01
MOQ
50
Submit Inquiry Contact Sales Engineer

Process & Delivery Advantages

  • Supports ±0.01mm tolerance, with full coverage of 3/4/5-axis CNC machining centers
  • Materials include aluminum alloy, stainless steel, copper, titanium alloy, and engineering plastics
  • Paired with anodizing, electroplating, spraying, laser engraving, and other surface treatments
  • 100% full inspection before shipment, with first-article reports and dimensional CP/CPK data provided
  • In-house capacity in Dongguan, 7-15 days for standard parts, expedited channel within 5 days
PRODUCT OVERVIEW

Product Overview

Product Overview

Engineered for maximum rigidity and vibration dampening, this Cast Aluminum CNC Spindle Holder is a critical mounting fixture for industrial engraving routers and milling machines. Manufactured under the Altus Precision brand, this heavy-duty bracket ensures precise spindle alignment during high-speed machining operations. Complete with high-strength fixture screws, it is optimized for rapid installation and reliable performance across global manufacturing supply chains.

Technical Specifications

Parameter Specification
Material Cast Aluminum
Spindle Diameter Capacity 48mm / 52mm
Unit Weight 0.8 kg
Application CNC Engraving Machines, Milling Machines, Pipe Clamping

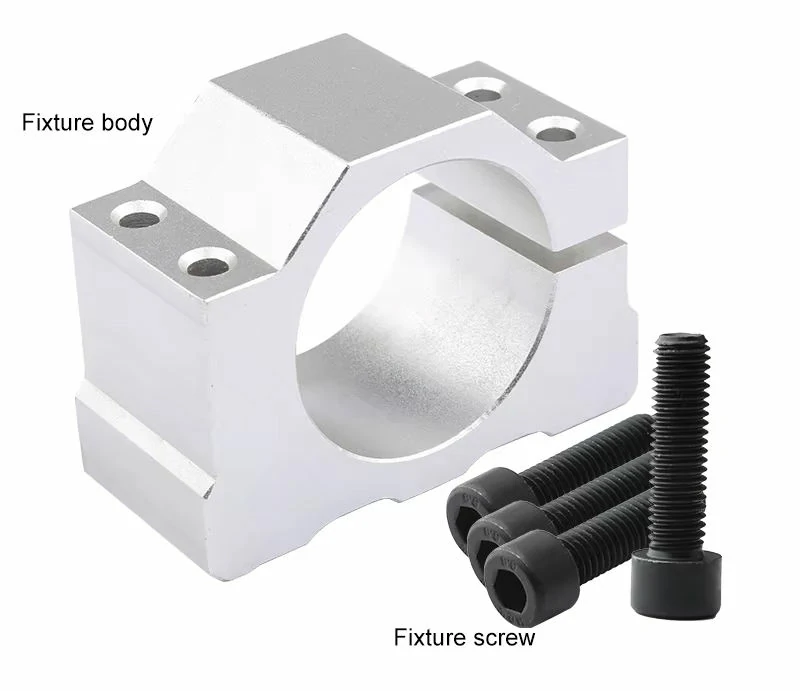

Included Components Main Fixture Body & High-Strength Fastening Screws
Quality Compliance Machinery Test Report Provided

Core Product Advantages

  • Low-Vibration Clamping: The 0.8kg thick-walled cast aluminum structure provides superior rigidity, absorbing cutting forces and preventing tool chatter during aggressive milling.
  • High-Tolerance Alignment: Precision machined internal bores ensure perfect concentricity, extending spindle motor life and maintaining strict machining tolerances.
  • Low Maintenance Cost: Treated for industrial durability, the clamp resists wear and corrosion from cutting fluids, reducing long-term replacement overhead.
  • Seamless Global Fulfillment: As a standard machine accessory, we maintain robust inventory buffers to ensure rapid dispatch to worldwide manufacturing hubs.

Frequently Asked Questions (FAQs)

Q1: What types of CNC equipment is this spindle holder compatible with?

A1: It is universally compatible with most CNC engraving routers, custom automation equipment, and milling machines that utilize a 48mm or 52mm diameter spindle motor.

Q2: Are the mounting screws included with the fixture?

A2: Yes, the set includes the main cast aluminum fixture body alongside premium high-strength hex screws for immediate and secure installation.

Q3: How does the cast aluminum construction benefit the machining process?

A3: The robust 0.8kg cast aluminum body offers excellent vibration dampening. This rigidity prevents micro-movements, ensures tighter cutting tolerances, and significantly extends cutting tool life.

Q4: What is the minimum order quantity (MOQ) for this machine accessory?

A4: We support agile procurement with an MOQ of 10 pieces. In-stock machine tool accessories are processed quickly to support uninterrupted global assembly and machining lines.
