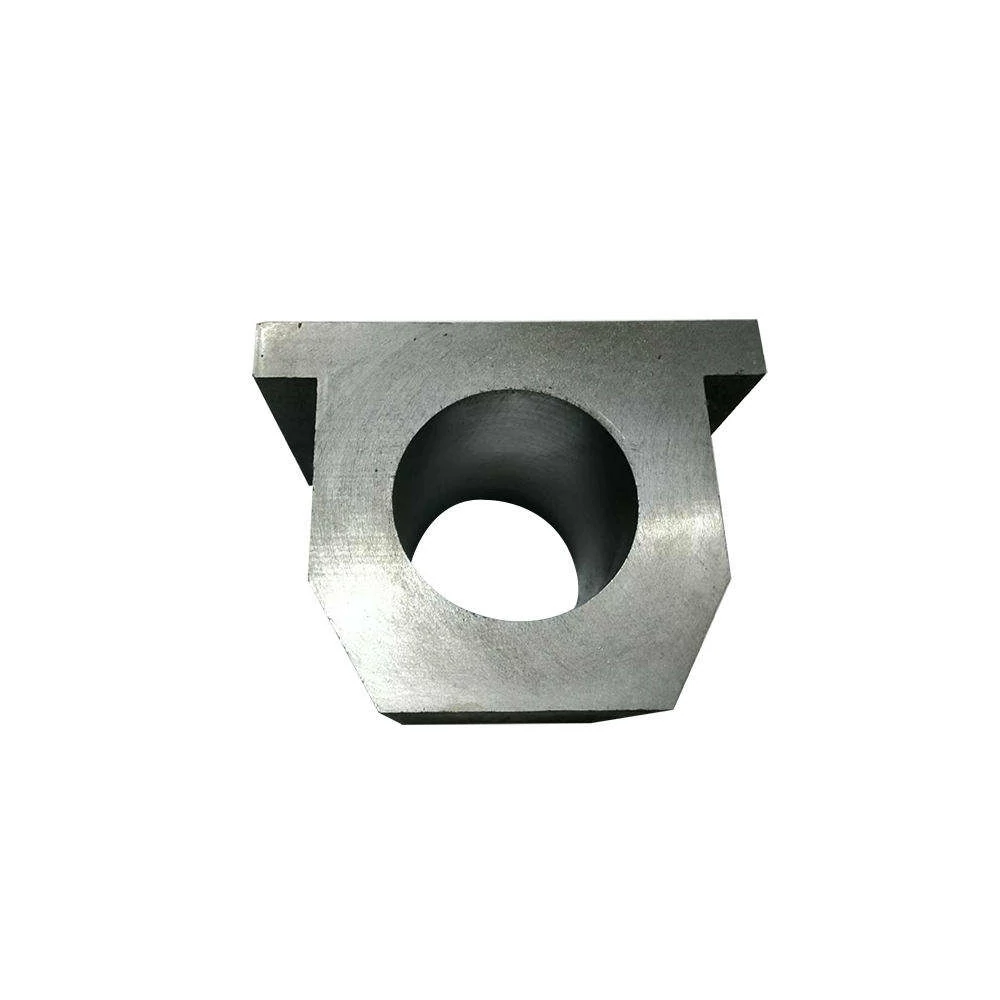

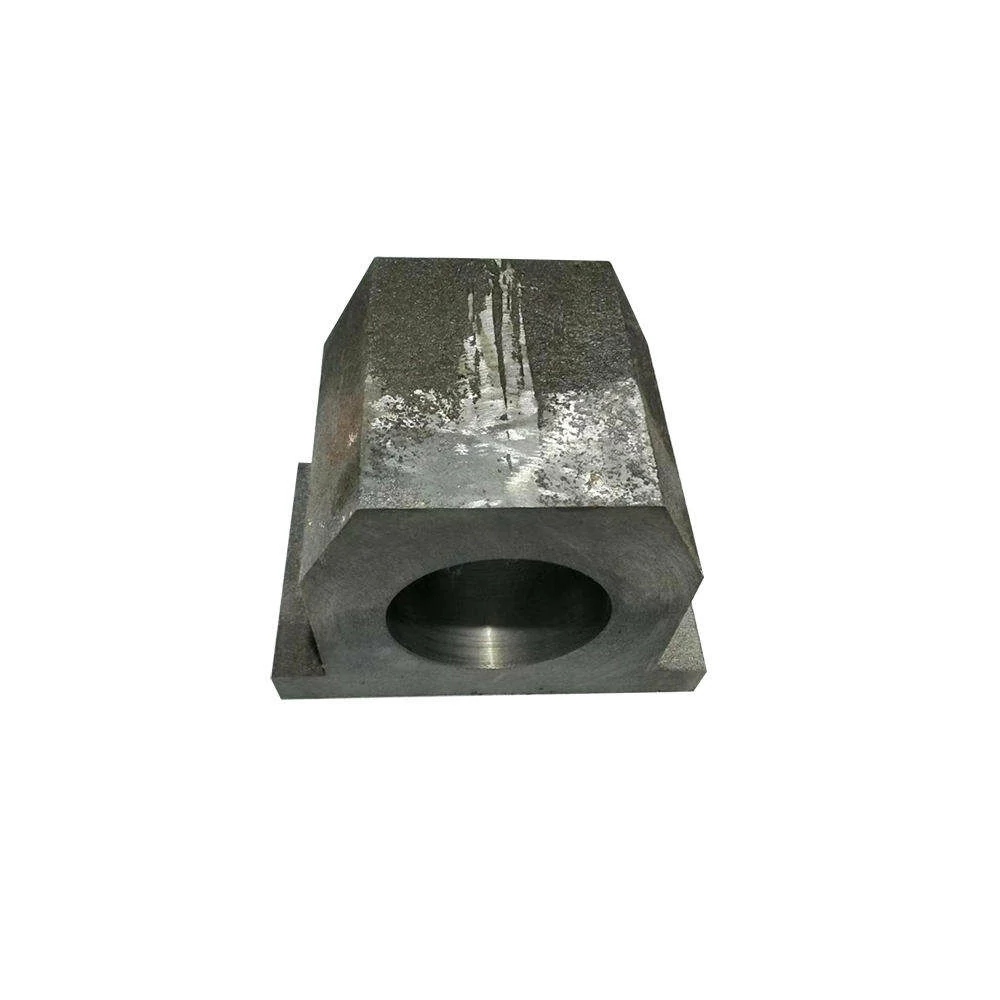

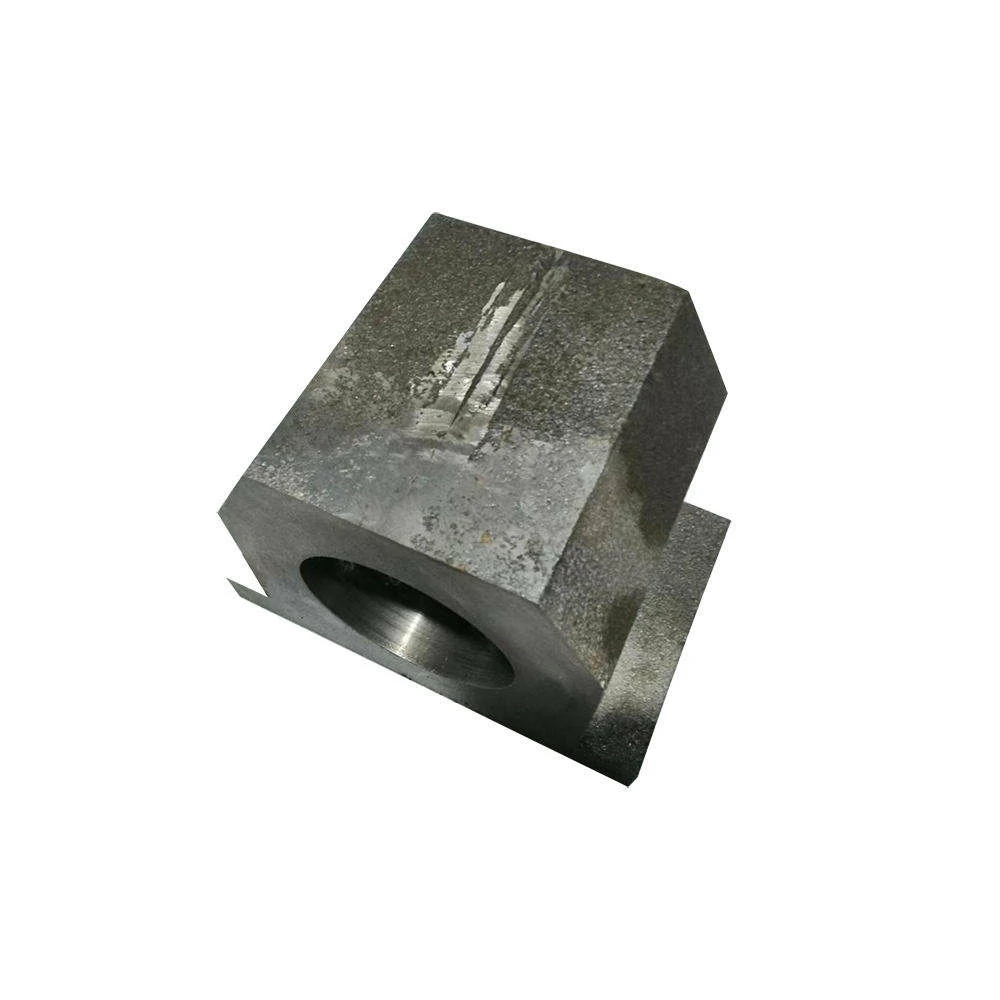

Heavy-Duty ATC CNC Spindle Mounting Bracket Support Base
Machine & Cutting Tool Accessories

Heavy-Duty ATC CNC Spindle Mounting Bracket Support Base

Robust heavy-duty CNC spindle mounting bracket engineered for automatic tool change (ATC) spindles. This simple yet highly rigid support base ensures exceptional vibration dampening, strict perpendicular alignment, and long-term stability for industrial milling and automation equipment across global supply chains.

Model
MC-AL-03
MOQ
5
Submit Inquiry Contact Sales Engineer

Process & Delivery Advantages

  • Supports ±0.01mm tolerance, with full coverage of 3/4/5-axis CNC machining centers
  • Materials include aluminum alloy, stainless steel, copper, titanium alloy, and engineering plastics
  • Paired with anodizing, electroplating, spraying, laser engraving, and other surface treatments
  • 100% full inspection before shipment, with first-article reports and dimensional CP/CPK data provided
  • In-house capacity in Dongguan, 7-15 days for standard parts, expedited channel within 5 days
PRODUCT OVERVIEW

Product Overview

Product Overview

Engineered to provide uncompromising stability for high-speed machining, this Heavy-Duty ATC CNC Spindle Mounting Bracket serves as a critical support base for automated milling and routing equipment. Manufactured under the Altus Precision standard, this robust fixture features a precision-machined flat base and high-rigidity cast construction. It effectively absorbs cutting vibrations and maintains strict spindle alignment, ensuring reliable continuous operation for global OEM automation supply chains.

Technical Specifications

Parameter Specification
Material Component High-Rigidity Cast Metal (Iron/Steel Alloy)
Fixture Type Simple Support Base / Mounting Block
Spindle Compatibility Automated Tool Change (ATC) CNC Spindles
Mounting Style Precision Flat Base Bottom Mount
Primary Applications CNC Routers, Milling Machines, Robotics Integration
Quality Compliance Dimensional Layout & Machinery Test Report Provided

Core Engineering Advantages

  • Maximum Vibration Dampening: The heavy-duty cast construction acts as a structural shock absorber, neutralizing aggressive cutting forces to prevent tool chatter and extend bearing life.
  • Precision Perpendicular Alignment: The mounting base is CNC faced to strict flatness tolerances, ensuring the spindle remains perfectly perpendicular to the work surface during multi-axis operations.
  • ATC Mechanism Support: Specifically designed to withstand the rapid dynamic loads and pneumatic stresses generated by automatic tool change (ATC) spindle cycles.
  • Seamless Global Supply: Maintained as a high-priority machine tool accessory, this component is ready for rapid cross-border dispatch to international assembly lines and automation hubs.

Frequently Asked Questions (FAQs)

Q1: What materials are used to construct this spindle support bracket?

A1: The bracket is manufactured from high-rigidity cast metal (cast iron or steel alloys), chosen specifically for its superior vibration-dampening properties and structural density.

Q2: Is this mounting base suitable for Automatic Tool Change (ATC) spindles?

A2: Yes, it is explicitly engineered with the robust wall thickness required to handle the pneumatic force and repetitive mechanical shocks associated with ATC operations.

Q3: How does the flat base design improve CNC machining accuracy?

A3: The precision-faced flat bottom guarantees that once bolted down, the spindle axis remains strictly parallel to the Z-axis, eliminating tramming errors and improving overall cutting tolerance.

Q4: What is the Minimum Order Quantity (MOQ) for this structural component?

A4: We support agile OEM procurement with a flexible MOQ starting at 5 to 10 pieces, allowing international equipment manufacturers to conduct thorough structural validation before scaling orders.
