Heavy-Duty CNC Pneumatic ATC Spindle (Belt-Driven, BT30, 10000RPM)
Machine & Cutting Tool Accessories

Heavy-Duty CNC Pneumatic ATC Spindle (Belt-Driven, BT30, 10000RPM)

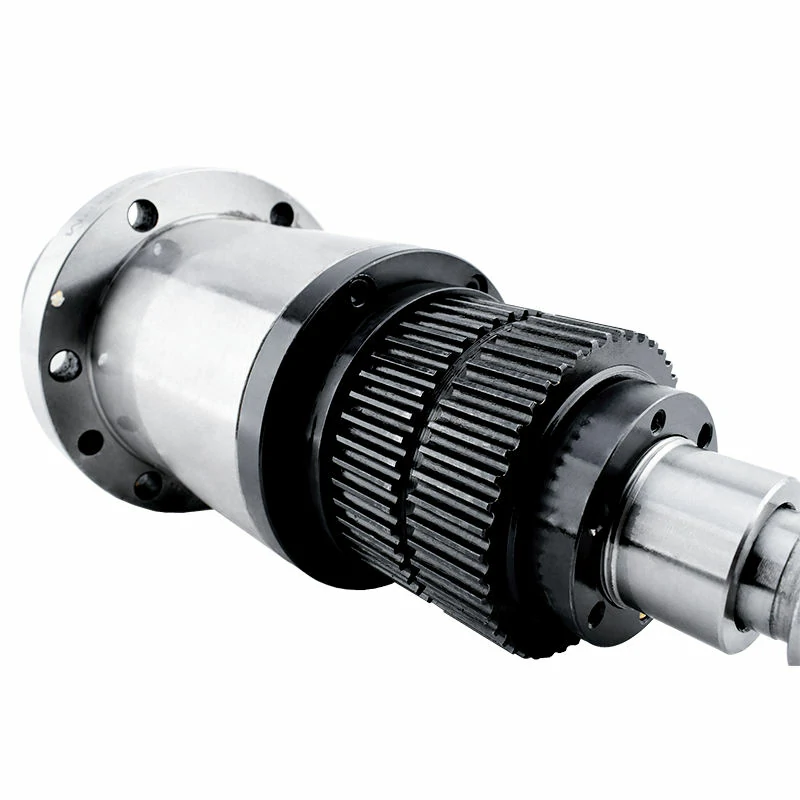

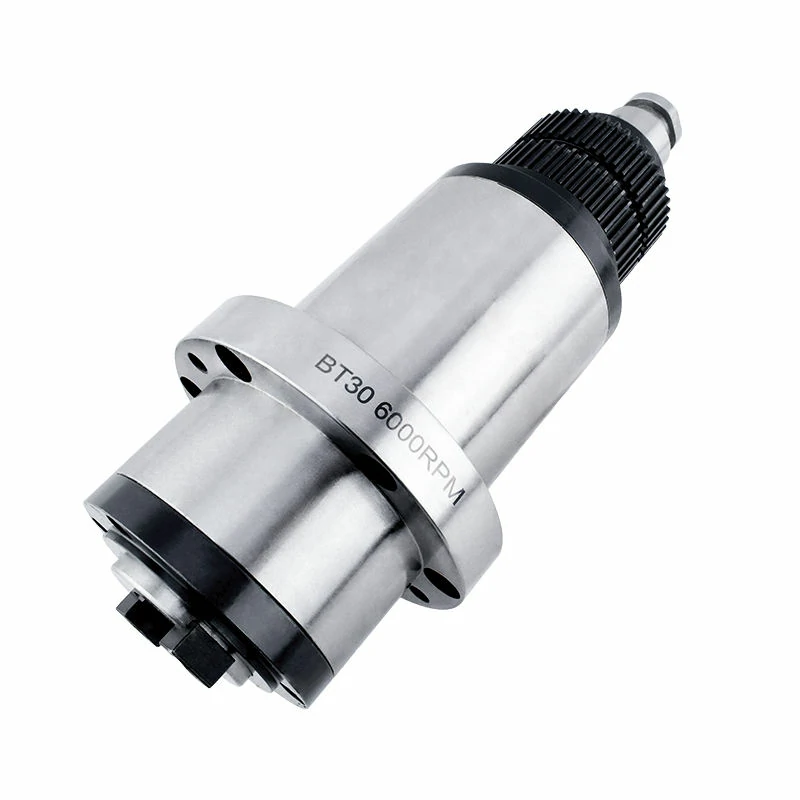

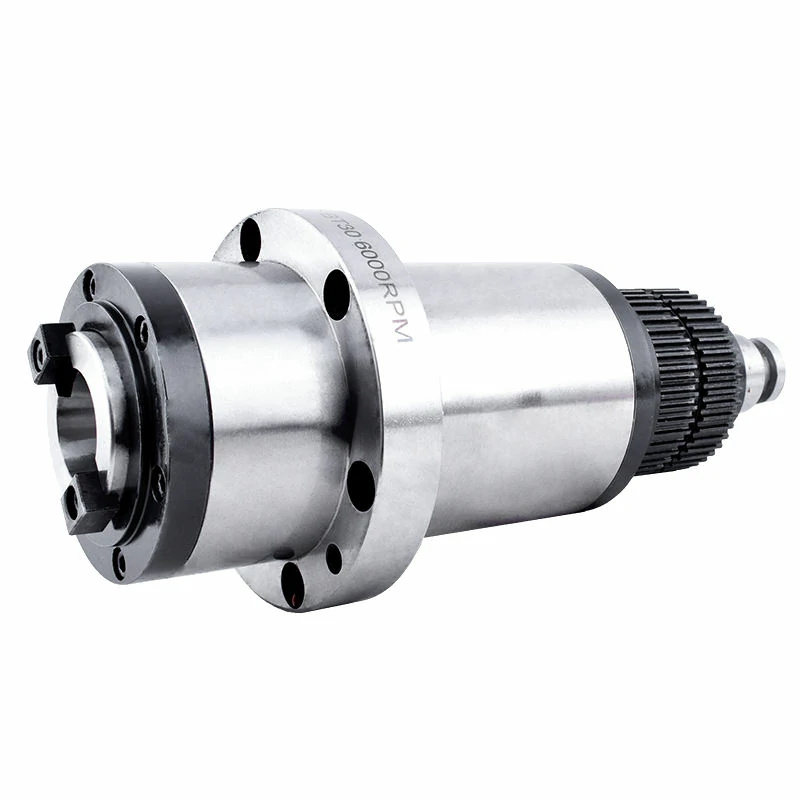

High-performance pneumatic automatic tool change (ATC) spindle engineered for precision CNC engraving and industrial milling machines. Featuring a robust belt-driven mechanism, standard BT30 joint nose, and high-precision 7008C P4x4 bearings, this 22kg heavy-duty spindle delivers up to 10000RPM for demanding automation equipment across global supply chains.

Model
MC-AL-02
MOQ
1
Submit Inquiry Contact Sales Engineer

Process & Delivery Advantages

  • Supports ±0.01mm tolerance, with full coverage of 3/4/5-axis CNC machining centers
  • Materials include aluminum alloy, stainless steel, copper, titanium alloy, and engineering plastics
  • Paired with anodizing, electroplating, spraying, laser engraving, and other surface treatments
  • 100% full inspection before shipment, with first-article reports and dimensional CP/CPK data provided
  • In-house capacity in Dongguan, 7-15 days for standard parts, expedited channel within 5 days
PRODUCT OVERVIEW

Product Overview

Product Overview

Engineered for high-efficiency automation and continuous industrial machining, this Pneumatic Automatic Tool Change (ATC) Spindle delivers exceptional rotational stability and torque transfer. Manufactured as a critical machine tool accessory under the Altus Precision standard, the unit features a reliable belt-driven design that isolates motor vibration, combined with a robust BT30 joint nose for rapid tool swaps. It is optimized to empower CNC routers, engraving machines, and custom milling equipment across global OEM supply chains.

Technical Specifications

Parameter Specification
Spindle Type Pneumatic Automatic Tool Change (ATC)
Drive Mechanism Belt Drive
Joint Nose Standard BT30
Maximum Operating Speed 10000 RPM
Bearing Configuration 7008C P4x4 (High-Precision Angular Contact)
Outer Diameter 90 mm
Unit Weight 22 kg
Primary Applications Drilling, Precision Milling, and Automated CNC Routing

Core Engineering Advantages

  • Vibration-Isolated Belt Drive: The external belt drive mechanism effectively isolates motor vibration and heat from the spindle shaft, ensuring superior surface finishes and prolonged bearing life during aggressive milling.
  • Rapid Tool Change Efficiency: Equipped with an integrated pneumatic cylinder and standard BT30 interface, drastically reducing downtime in high-volume automated manufacturing environments.
  • Extreme Runout Precision: Utilizing ultra-precise 7008C P4x4 bearings, this 22kg spindle maintains strict dynamic balance at 10000 RPM, crucial for demanding CNC tolerances.
  • Seamless Global Supply: Available as a standard machine tool accessory with flexible ordering, supporting prompt dispatch to overseas assembly lines and robotics integration hubs.

Frequently Asked Questions (FAQs)

Q1: What are the main benefits of a belt-driven spindle over a direct-drive model?

A1: A belt-driven spindle separates the spindle shaft from the motor. This isolates the cutting tool from motor-generated heat and vibration, allowing for smoother cuts, higher torque capacity at lower speeds, and easier motor replacement.

Q2: What is the bearing configuration, and why does it matter?

A2: This spindle utilizes a 7008C P4x4 high-precision angular contact bearing setup. The P4 precision class ensures extremely low runout, which is critical for extending tool life and achieving tight-tolerance CNC machining.

Q3: Is this spindle compatible with standard BT30 tool holders?

A3: Yes, the joint nose is a standard BT30 taper. Integrated with the pneumatic cylinder, it is designed for fully automatic tool changes (ATC) in automated drilling and milling centers.

Q4: What is the Minimum Order Quantity (MOQ) for international orders?

A4: For high-value machine accessories like this 22kg ATC spindle, we support an agile MOQ of just 1 piece, allowing overseas equipment builders to conduct pilot testing before scaling production.

RELATED PRODUCTS
