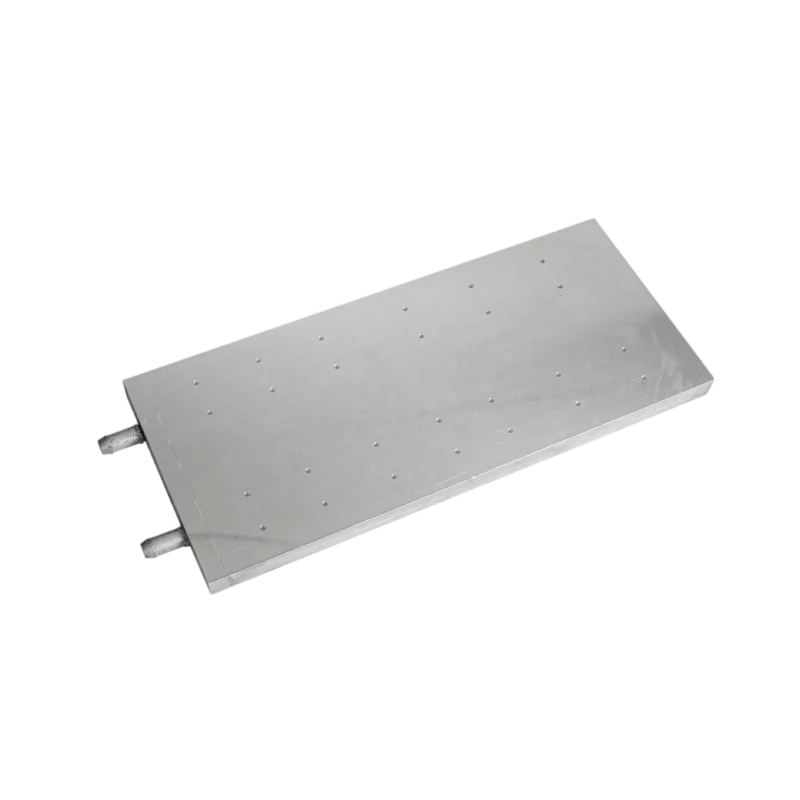

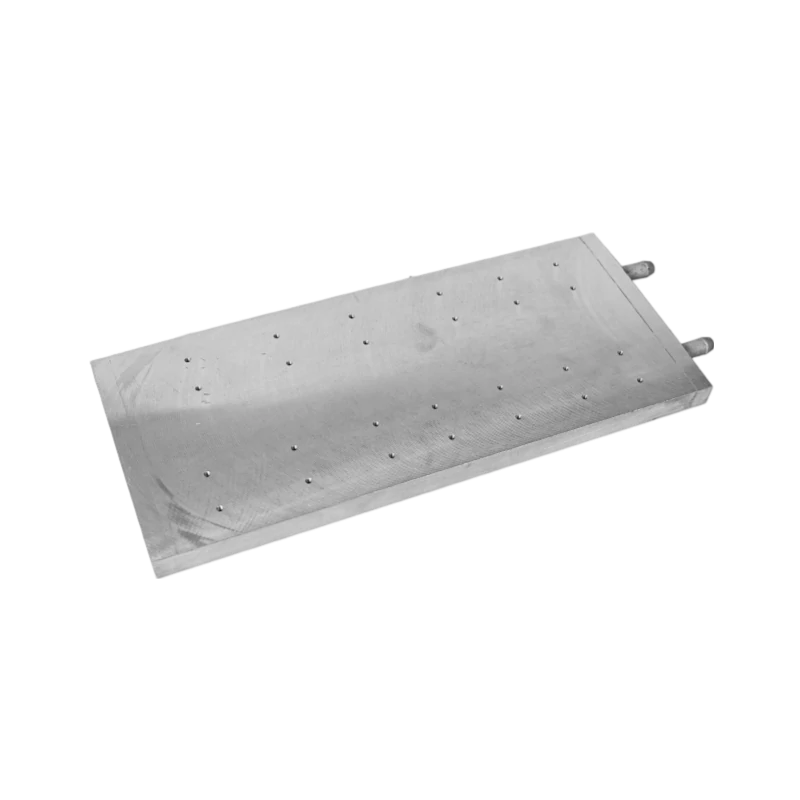

Custom Aluminum Brazed Liquid Cold Plate for EV & AI Servers

Name: Custom Precision CNC Machined Parts
Brand: Altus Precision
SKU: ALTUS-CNC-CUSTOM
Availability: InStock
Rating: 4.8 (47 reviews)

High-performance aluminum brazed liquid cold plate engineered for extreme thermal management. Measuring 288x125x14mm with standard 10mm OD water taps, this precision-machined heatsink delivers optimal fluid dynamics and 100% leak-proof reliability for EV batteries, AI servers, and industrial power electronics across global supply chains.

Model

LC-AL-06

MOQ

Submit Inquiry Contact Sales Engineer

Process & Delivery Advantages

Supports ±0.01mm tolerance, with full coverage of 3/4/5-axis CNC machining centers
Materials include aluminum alloy, stainless steel, copper, titanium alloy, and engineering plastics
Paired with anodizing, electroplating, spraying, laser engraving, and other surface treatments
100% full inspection before shipment, with first-article reports and dimensional CP/CPK data provided
In-house capacity in Dongguan, 7-15 days for standard parts, expedited channel within 5 days

PRODUCT OVERVIEW

Product Overview

Engineered to manage the extreme thermal loads of modern technology, this Custom Aluminum Brazed Liquid Cold Plate (Model: OC-M20S) provides superior heat dissipation for EV battery packs, AI servers, and high-power industrial electronics. Manufactured at our dedicated CNC facility, this unit combines high-purity aluminum with advanced vacuum brazing technology to deliver low thermal resistance and exceptional fluid dynamics. It is fully optimized for scalable integration into global OEM supply chains.

Technical Specifications

Parameter	Specification
Product Model	OC-M20S
Core Material	High-Purity Aluminum
Overall Dimensions	288mm (L) x 125mm (W) x 14mm (H)
Water Tap / Nozzle	10mm Outer Diameter (OD)
Manufacturing Process	Precision CNC Machining & Vacuum Brazing
Primary Applications	EV Batteries, AI Servers, Data Centers, Industrial Heat Exchangers
Quality Assurance	100% Pressure & Leak Tested Prior to Dispatch

Core Manufacturing Advantages

Advanced Brazing Technology: Utilizes vacuum brazing to ensure a seamless, high-strength bond between aluminum plates, maximizing thermal conductivity while eliminating leakage risks.
Optimized Fluid Dynamics: The internal flow channels are precision-engineered to reduce pressure drop and ensure uniform coolant distribution across the entire 288x125mm surface area.
Zero-Defect Quality Control: Every single cold plate undergoes rigorous in-process inspections, including 100% pressure and leak testing, to meet strict industrial and automotive safety standards.
Agile OEM Prototyping: We provide proactive Design for Manufacturability (DFM) support, enabling rapid transition from initial engineering validation to high-volume global production.

Frequently Asked Questions (FAQs)

Q1: What are the primary applications for this aluminum cold plate?

A1: This highly efficient heat sink is specifically designed for high-power thermal management, making it ideal for EV battery packs, AI and high-performance computing (HPC) servers, and heavy-duty industrial power electronics.

Q2: Can the dimensions and water tap sizes be customized?

A2: Yes. While the OC-M20S model measures 288x125x14mm with a 10mm OD tap, our engineering team provides full custom CNC machining and DFM analysis to modify dimensions, internal flow channels, and port placements to match your exact assembly requirements.

Q3: How do you guarantee the cold plate will not leak during operation?

A3: The structural integrity is secured through precision vacuum brazing. Additionally, 100% of our liquid cooling plates are subjected to strict pneumatic or hydrostatic pressure testing prior to shipment to guarantee zero-leakage performance.

Q4: What is the Minimum Order Quantity (MOQ) for custom thermal projects?

A4: We support agile R&D and pilot runs with a flexible MOQ starting around 5 to 10 pieces. Once the prototype is approved, our scalable manufacturing lines ensure stable and rapid high-volume OEM delivery.
